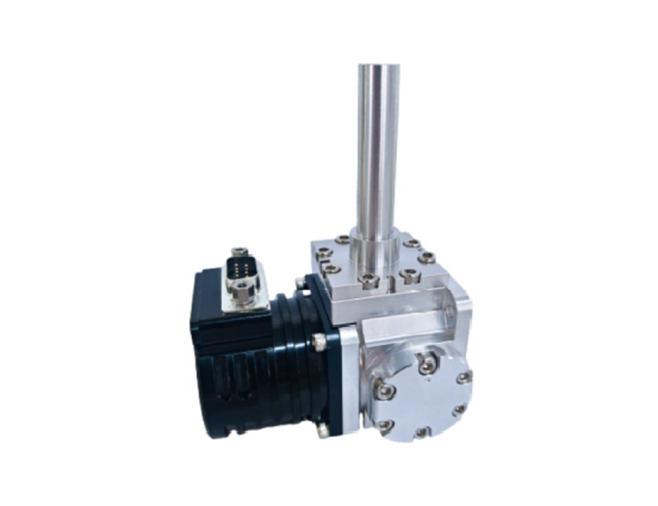

Product Feature
(1)Integrated Dewar and Cold finger Assembly Design
(3)Standardized Cold Finger Mechanical Interface
(3)Built-in High-precision Drive Controller
Key Specification
(1)Total Cooling Power: 1.1W@77K@23℃
0.8W@77K@71℃
(2)Typical Cool Down Time: 6min@77K@23℃@500J
8min@77K@71℃500J
(3)Typical Maximum Input Power: 36W℃
(4)Typical Steady State Input Power : 28W℃（280mW@77K@23℃）
(5)Input Voltage: 24V℃±1V℃
(6)Cooler Weight ≤550g

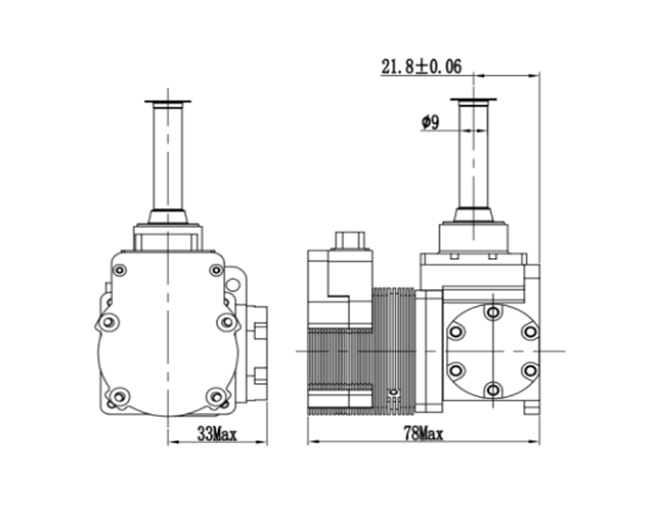

(7)Cold Finger Diameter: 9mm
(8)Basic MTTF(hr): 10000h
(9)Ambient Temperature Range - Operation: -40℃～71℃
Application Field
Temperature above 77K / second-generation focal plane detectors with arrays up to 640×512
