Product Reference
IFF-C0_8B04

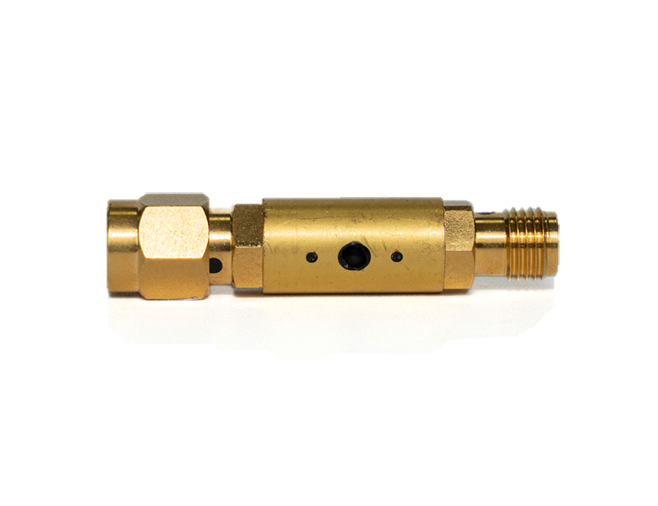

Product Introduction
Infrared Filters feature low insertion loss and high out-of-band rejection, operating in ultra-low temperature environments to filter out out-of-band infrared signals (above 88GHz).

Key Features
Attenuation ≤0.7dB@1GHz；≤5dB@8GHz
≥8dB@18GHz；≥30dB@88GHz
VSWR ≤1.4@DC～8GHz
Operating Temp. 10mK～5K
Storage Temp. -55℃～+85℃
Connectors SMA-JK Coaxial Port
Housing Gold-Plated Copper Enclosure

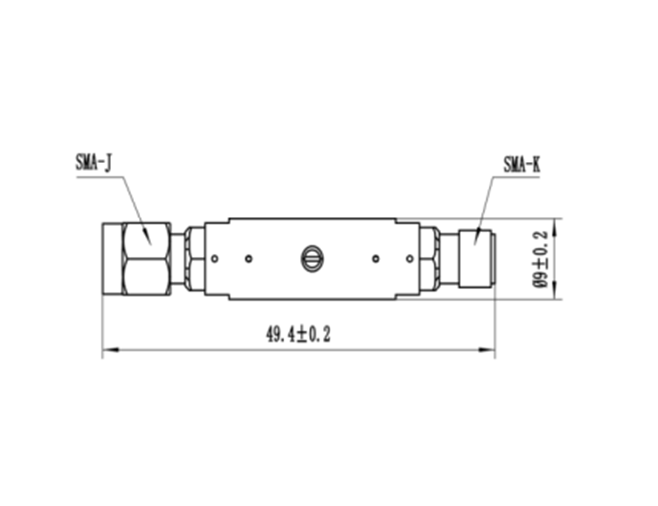

Dimensions Φ9mm×49.4mm
Weight ≤50g

Note
(1) Default unit for dimensions: millimeter (mm)/degree (°); Unless otherwise specified, default tolerances are: x±1.0/x±0.50 for dimensions, ±1° for angles, and ±0.3 for holes;
(2) Dimensions, interfaces and operating temperature ranges can be customized according to customer requirements.
