Product Reference

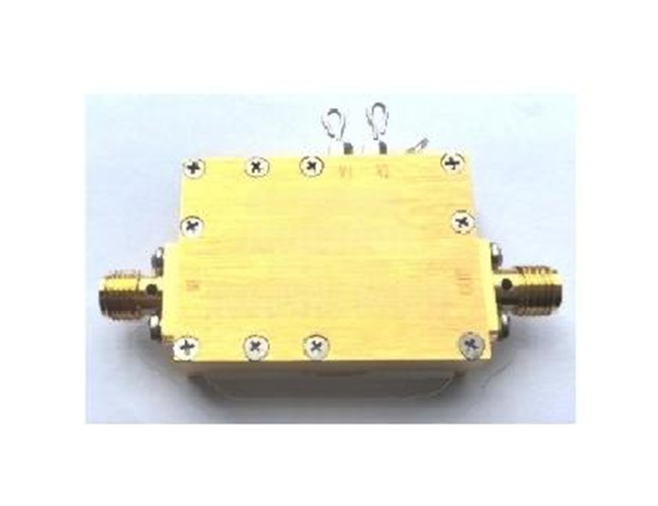

LNA-C0.01_2A

Product Introduction
Cryogenic Low-Power Low-Noise Amplifier features ultra-low noise characteristics, significantly reducing noise introduced at the receiver front-end and improving system sensitivity. Suitable for deep space exploration, radio astronomy, quantum computing, and wireless communications. The LNA-C0.01_2A cryogenic amplifier operates at 4K temperature range with characteristics of low frequency, wide bandwidth, low noise temperature, and low power consumption.

Key Features
RF Bandwidth 10MHz～2GHz
Gain ≥35dB
Noise temperature ≤10K
VSWR ≤1.8
Output 1dB compression point -10dBm
Operating temperature range 4K±1K
Storage Temp. -55℃～+85℃
Power consumption ≤16mW
DC voltage range V1(1.3V)，V2(1.35V)
DC current range I＜10mAI＜10mA
RF port SMA-K coaxial connector
Power supply port M2.5 feedthrough capacitor
Housing Copper

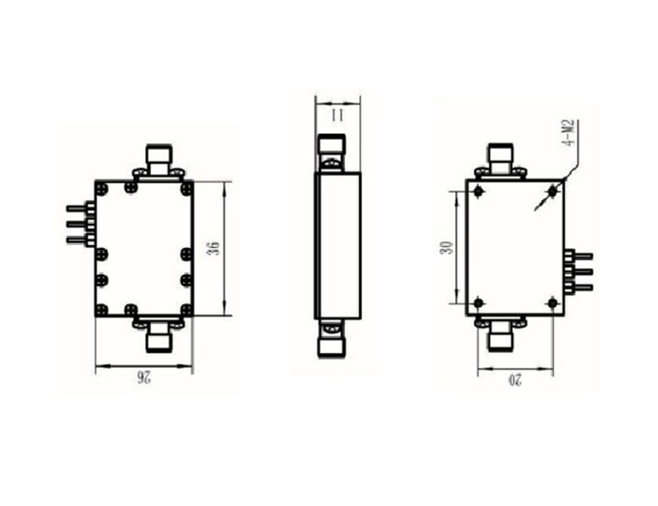

Dimensions 36mm×26mm×11mm (excluding connectors)
Weight ≤50g

Note
(1) Default unit for dimensions: millimeter (mm)/degree (°); Unless otherwise specified, default tolerances are: x±1.0/x±0.50 for dimensions, ±1° for angles, and ±0.3 for holes;
(2) Dimensions, interfaces and operating temperature ranges can be customized according to customer requirements.
