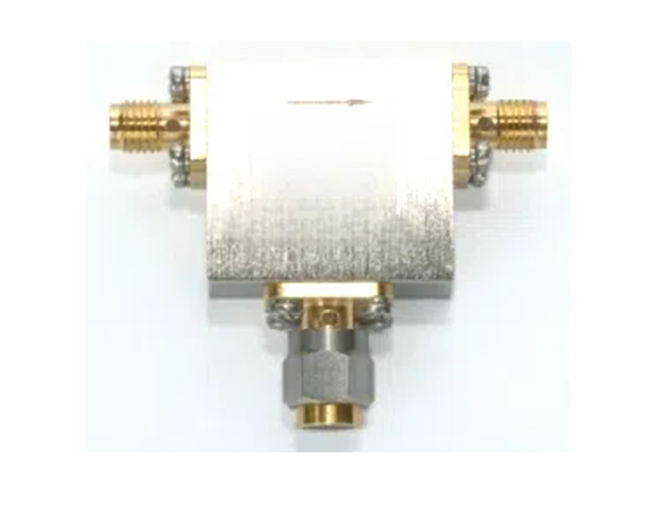

ISC1-C4_8A

Product Introduction
Cryogenic Isolator features low insertion loss and high isolation characteristics, improving matching between ultra-low temperature microwave link components and enhancing isolation between front-end and rear-end devices. Suitable for deep space exploration, radio astronomy, quantum computing, and wireless communications. The ISC1-C4_8A cryogenic circulator operates in the 10mK-5K temperature range with wide bandwidth and high isolation characteristics. It can also be cascaded to improve isolation in microwave links and reduce reflection effects from output ports to input ports.

Key Features
RF Bandwidth 4GHz～8GHz
Insertion loss ≤0.2dB
VSWR ≤1.25
Isolation ≥20dB
Operating temperature range 10mK～5K
Storage Temp. -55℃～+85℃
RF port SMA-K coaxial connector
Housing Gold-plated oxygen-free copper
Shielding layer Nickel-plated

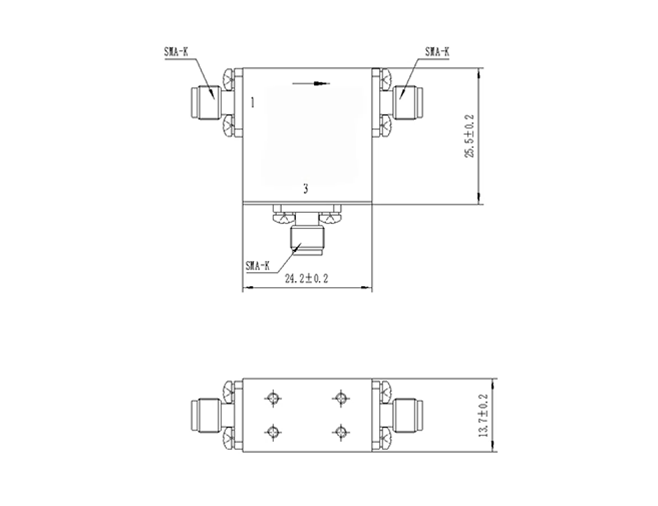

Dimensions 24.2mmx25.5mmx13.7mm
Weight ≤75g

Note
(1) Default unit for dimensions: millimeter (mm)/degree (°); Unless otherwise specified, default tolerances are: x±1.0/x±0.50 for dimensions, ±1° for angles, and ±0.3 for holes;
(2) Dimensions, interfaces and operating temperature ranges can be customized according to customer requirements.
