CFC1-C1_18A

Product Introduction

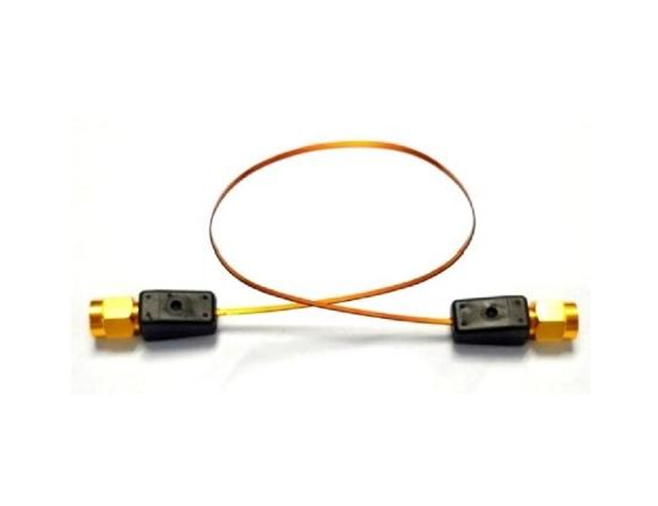

Cryogenic Flexible Cable features low thermal load and excellent vibration isolation characteristics. With vibration- and bending-insensitive phase stability, it withstands repeated bending and solves space constraints in crowded equipment. Suitable for deep space exploration, radio astronomy, and quantum computing. Operates from room temperature to ultra-low temperatures for microwave transmission and power feedthrough with effective thermal isolation.

Key Features
RF Bandwidth DC～18GHz
Inisertion loss ≤7dB/m@DC～6GHz；≤14dB/m@6GHz～18GHz
VSWR ≤1.25@DC～12GHz；≤1.5@12GHz～18GHz
Thermal load L=0.2m; (△T:4K-50K) 5.7mW
Operating Temperature range 10mK～5K
Storage Temp. -40℃～+70℃
RF connectors SMA, SMP (customizable)
Length 200～600mm
Width 1.3mm（Single channel）
Minimum bending radius 1mm
Twist angle 180°/5mm

Note

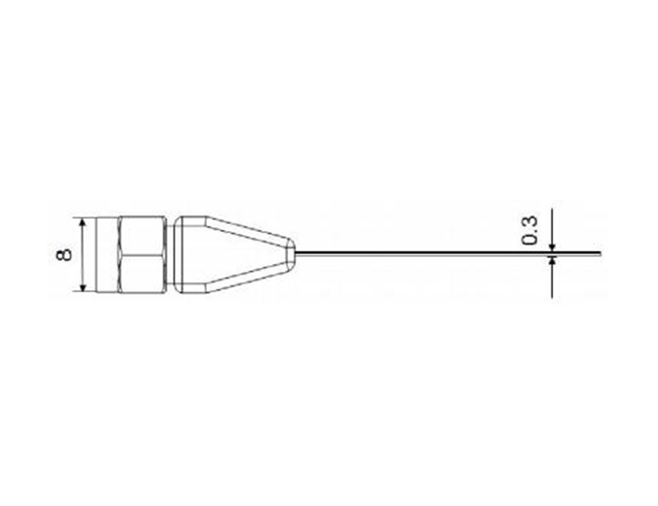

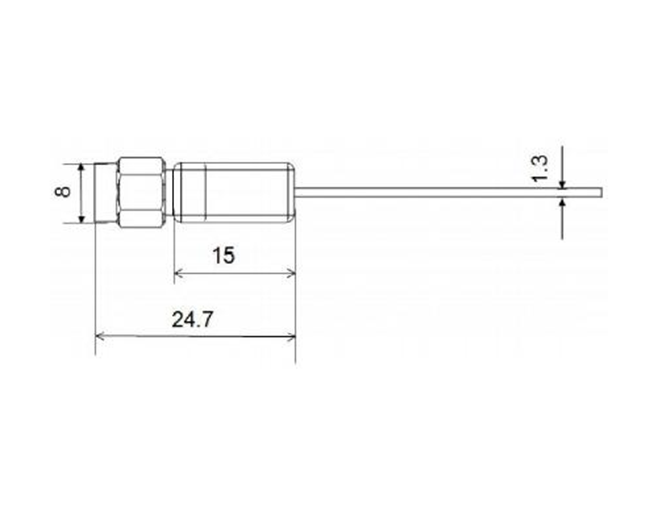

(1) Default unit for dimensions: millimeter (mm)/degree (°); Unless otherwise specified, default tolerances are: x±1.0/x±0.50 for dimensions, ±1° for angles, and ±0.3 for holes;
(2) Dimensions, interfaces and operating temperature ranges can be customized according to customer requirements.
