LNA-R4_8A

Product Introduction

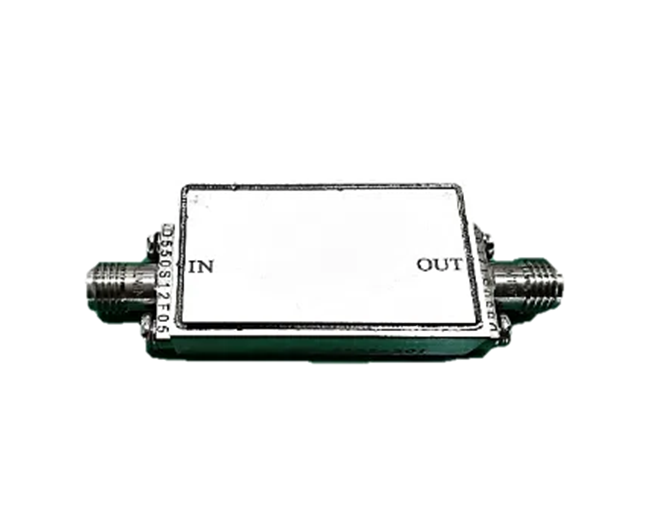

Room Temperature Microwave Amplifier features low noise, high gain and high output P-1 characteristics, capable of receiving and amplifying microwave signals across the entire C-band. Suitable for quantum computing, radio astronomy and wireless communications applications, it further amplifies weak microwave signals after front-end reception and amplification.

Key Features
RF Bandwidth 4GHz～8GHz
Gain ≥60dB
Noise Figure ≤1.0dB
VSWR ≤1.5
Saturated Power ≥13.5dBm
Operating temperature range Room temperature
Storage Temp. -55℃～+85℃
Input/Output RF port SMA-K Coaxial Connector
Power supply port Glass Insulator (+5V) Ground Post (GND)
Housing Conductive Oxidized Aluminum Alloy Enclosure

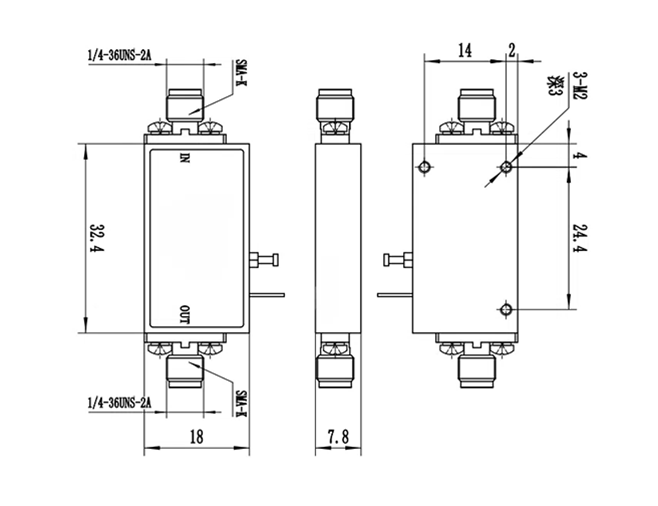

Dimensions ≤32.4mm×18mm×7.8mm(excluding connectors)
Weight ≤40g

Note
(1) Default unit for dimensions: millimeter (mm)/degree (°); Unless otherwise specified, default tolerances are: x±1.0/x±0.50 for dimensions, ±1° for angles, and ±0.3 for holes;
(2) Dimensions, interfaces and operating temperature ranges can be customized according to customer requirements.
