Product Reference

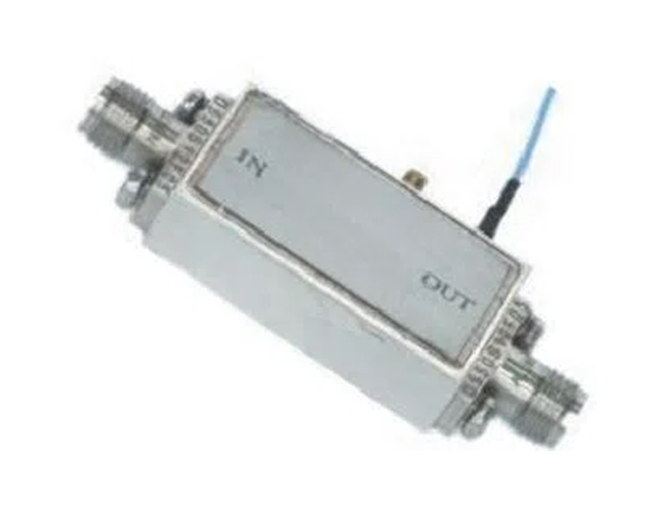

LNA-R0.03_1A

Product Introduction
IF Amplifier features wideband, low-noise and high output P-1 characteristics, capable of receiving and amplifying microwave signals covering 30MHz-1GHz. Suitable for quantum computing, radio astronomy and wireless communications applications, it amplifies the intermediate frequency signals after front-end reception, amplification and frequency conversion

Key Features
RF Bandwidth 30MHz～1GHz
Gain ≥30dB
VSWR ≤1.5
Saturated Power ≥12.8dBm
Operating Current 170mA@+5V (Typical)
Operating temperature range Room Temperature
Storage Temp. -55℃～+85℃
Input/Output RF port SMA-K Coaxial Connector
Power supply port Glass Insulator (+5V); Ground Post (GND)
Housing Conductive Oxidized Aluminum Alloy Enclosure

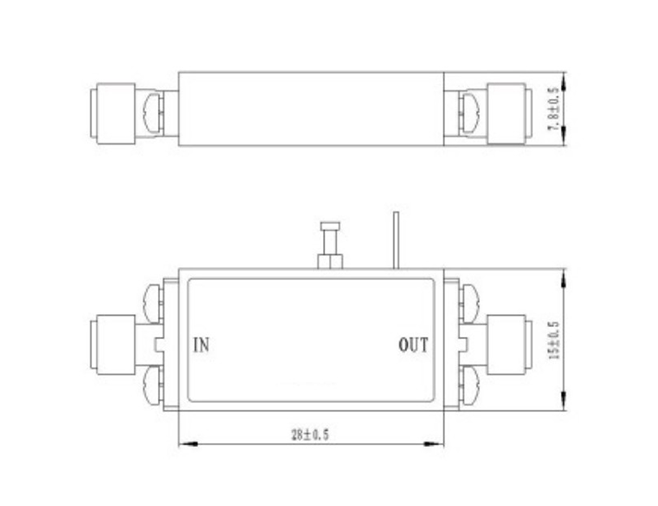

Dimensions ≤30mm×20mm×7.8mm (excluding connectors)
Weight ≤40g

Note
(1) Default unit for dimensions: millimeter (mm)/degree (°); Unless otherwise specified, default tolerances are: x±1.0/x±0.50 for dimensions, ±1° for angles, and ±0.3 for holes;
(2) Dimensions, interfaces and operating temperature ranges can be customized according to customer requirements.
