Product Reference

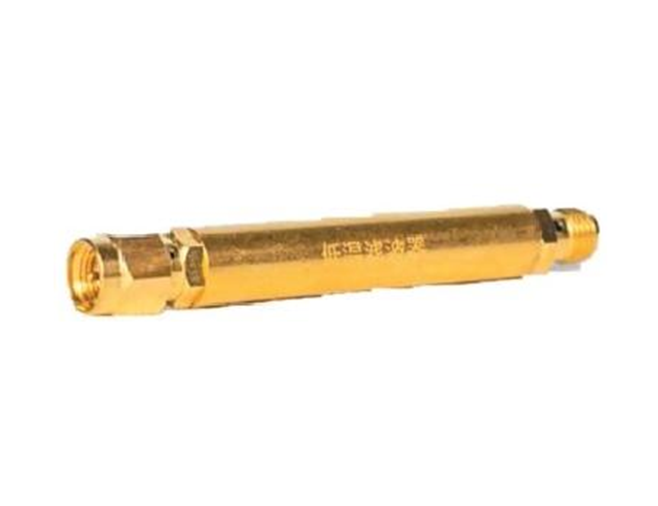

LPF-C0_8.5A

Product Introduction
Cryogenic RF Filter features low insertion loss and high out-of-band rejection characteristics, operating in ultra-low temperature environments to achieve out-of-band signal filtering and eliminate interference signals from room temperature to cryogenic links. Suitable for deep space exploration, radio astronomy, quantum computing and wireless communications. The LPF-C0_8.5A cryogenic RF filter operates at 4K temperature range with wide bandwidth and high out-of-band rejection characteristics.

Key Features
RF Bandwidth DC～8.5GHz
Insertion Loss ≤0.5dB
VSWR ≤1.5
Out-of-Band Rejection 30dB@15～20GHz
Operating Temprature Range 4K±1K
Storage Temp. -55℃～+85℃
Port SMA-JK Coaxial Connector
Housing Gold-Plated Copper Enclosure

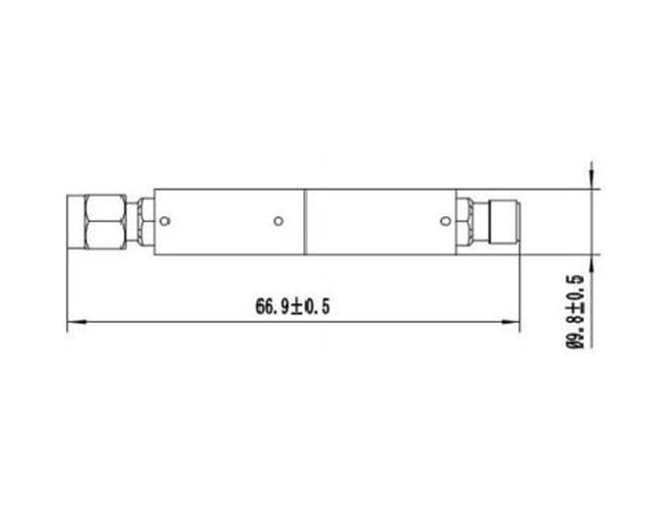

Dimensions ≤φ9.8mm×70mm
Weight ≤30g

Note
(1) Default unit for dimensions: millimeter (mm)/degree (°); Unless otherwise specified, default tolerances are: x±1.0/x±0.50 for dimensions, ±1° for angles, and ±0.3 for holes;
(2) Dimensions, interfaces and operating temperature ranges can be customized according to customer requirements.
