Product Reference
IQM-R3_7A

Product Introduction

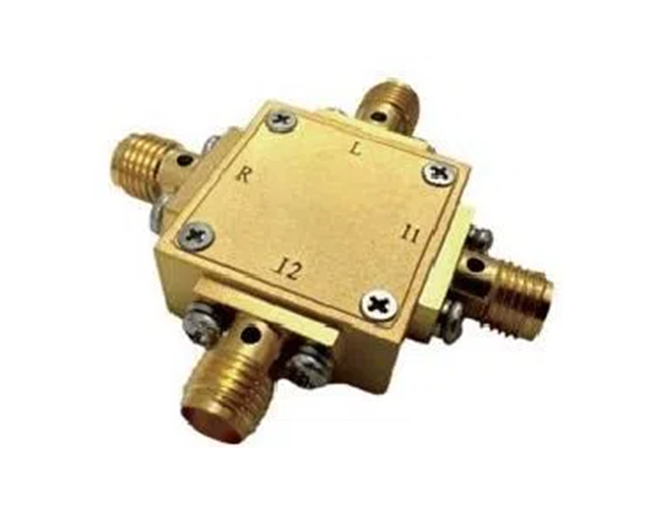

Quantum Computing IQ Mixer produces IF signals with matched amplitudes and 90° phase difference at I/Q ports. Using an external low-frequency quadrature coupler enables image rejection functionality. Suitable for deep space exploration, radio astronomy, quantum computing and wireless communications. The IQM-R3_7A IQ Mixer for quantum computing operates at 296K temperature range with wide bandwidth and high image rejection characteristics.

Key Features
LO&RF Frequency 3GHz～7GHz
IF Frequency DC～500MHz
Conversion Loss ≤7dB
Image Rejection ≥20dB
LO-RF Isolation ≥40dB
Amplitude Imbalance ≤0.5dB
Phase Imbalance ≤5°
Operating Temp. Room temperature
Storage Temp. -55℃～+85℃
RF Port SMA-K Coaxial Connector
Power Supply Port None
Housing Gold-Plated Brass Enclosure

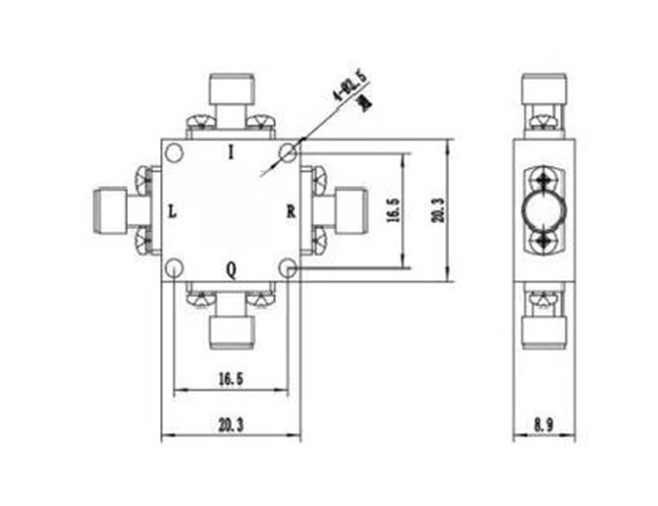

Dimensions 20.3mm×20.3mm×8.9mm
Weight ≤40g

Note
(1) Default unit for dimensions: millimeter (mm)/degree (°); Unless otherwise specified, default tolerances are: x±1.0/x±0.50 for dimensions, ±1° for angles, and ±0.3 for holes;
(2) Dimensions, interfaces and operating temperature ranges can be customized according to customer requirements.
