Product Reference

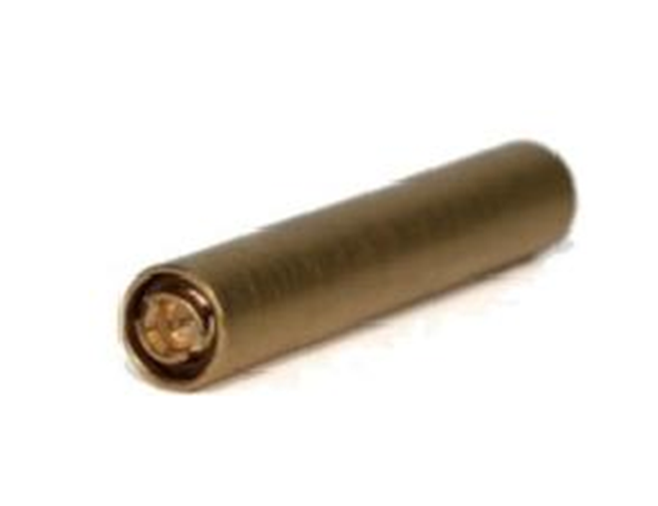

LPF-C0.05_1A

Product Introduction
Cryogenic Low-pass Filter features low insertion loss in passband and high stopband rejection characteristics, effectively increasing suppression in high frequency bands. Suitable for quantum computing, deep space exploration, radio astronomy and wireless communications. The LPF-C0.05_1A low-pass filter can operate from room temperature to ultra-low temperatures with high out-of-band rejection characteristics.

Key Features
RF Bandwidth 0.05GHz～1GHz
Insertion Loss ≤3dB@0.05GHz～1GHz
VSWR ≤1.5@0.05GHz～1GHz
Out-of-Band Rejection ≥40dB@2.3GHz～60GHz
Operating Temp. 10mK～5k
Storage Temp. -55℃～+85℃
Input/Output Interface SSMP-JJ
Housing Gold-plated Copper

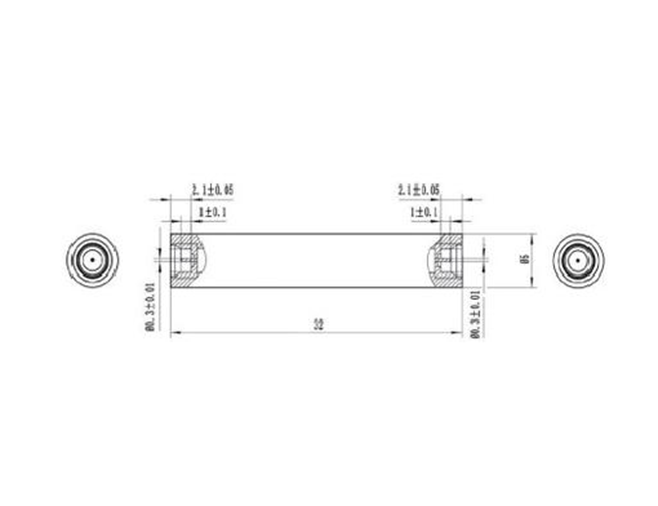

Dimensions ≤32mm×φ(5±0.1)mm

Note
(1) Default unit for dimensions: millimeter (mm)/degree (°); Unless otherwise specified, default tolerances are: x±1.0/x±0.50 for dimensions, ±1° for angles, and ±0.3 for holes;
(2) Dimensions, interfaces and operating temperature ranges can be customized according to customer requirements.
