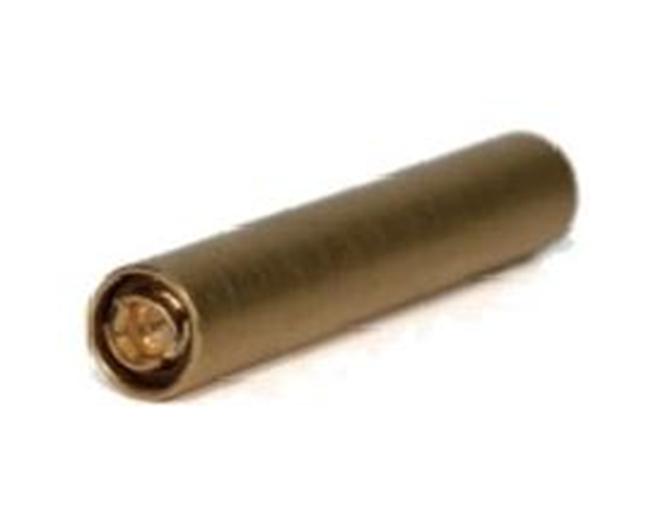

LPF-C0.05_8A

Product Introduction
Cryogenic Low-pass Filter features low insertion loss in passband and high stopband rejection characteristics, effectively increasing suppression in high frequency bands. Suitable for quantum computing, deep space exploration, radio astronomy and wireless communications. The LPF-C0.05_8A low-pass filter can operate from room temperature to ultra-low temperatures with high out-of-band rejection characteristics.

Key Features
RF Bandwidth 0.05GHz～8GHz
Insertion Loss ≤2dB@0.05GHz～8GHz
VSWR ≤1.5@0.05GHz～8GHz
Out-of-Band Rejection ≥40dB@11GHz～60GHz
Operating Temp. 10mK～5k
Storage Temp. -55℃～+85℃
Input/Output Interface SSMP-JJ
Housing Gold-plated Copper

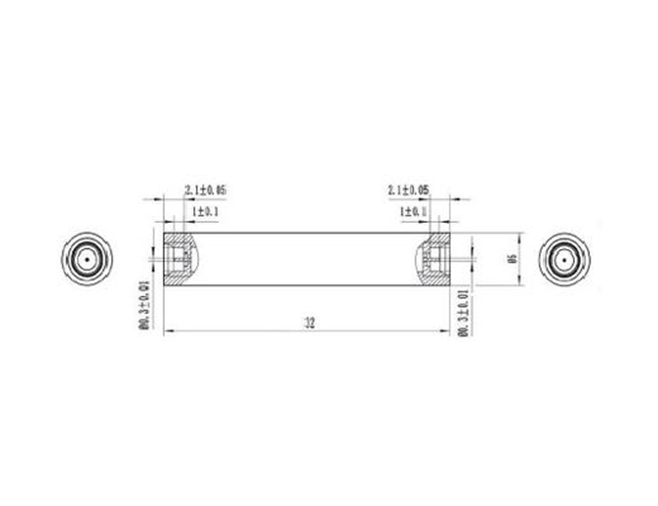

Dimensions ≤32mm×φ(5±0.1)mm

Note
(1) Default unit for dimensions: millimeter (mm)/degree (°); Unless otherwise specified, default tolerances are: x±1.0/x±0.50 for dimensions, ±1° for angles, and ±0.3 for holes;
(2) Dimensions, interfaces and operating temperature ranges can be customized according to customer requirements.
