Product Reference
IFF-C0_8A01

Product Introduction
Infrared Filter features low insertion loss and high out-of-band rejection characteristics, operating in ultra-low temperature environments to achieve out-of-band infrared signal (above 88GHz) filtering.

Key Features
Attenuation ≤0.3dB@1GHz / ≤1dB@8GHz / ≤3dB@18GHz
Operating Temp. 10mK～5K
Storage Temp. -55℃～+85℃
RF Port SMA-J,SMA-K

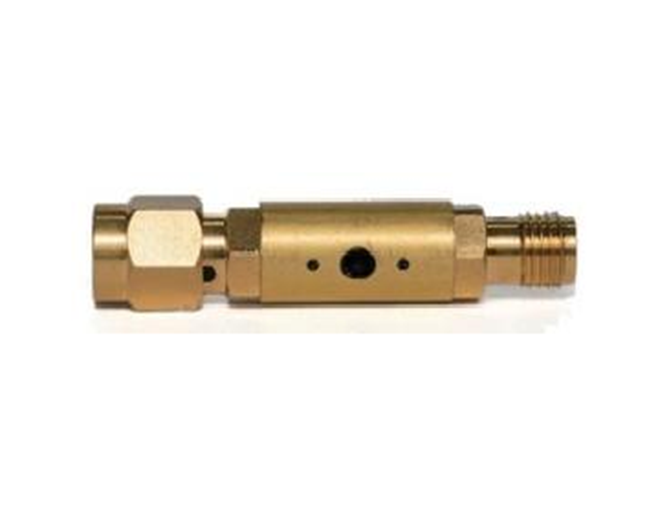

Housing Gold-Plated Copper Enclosure

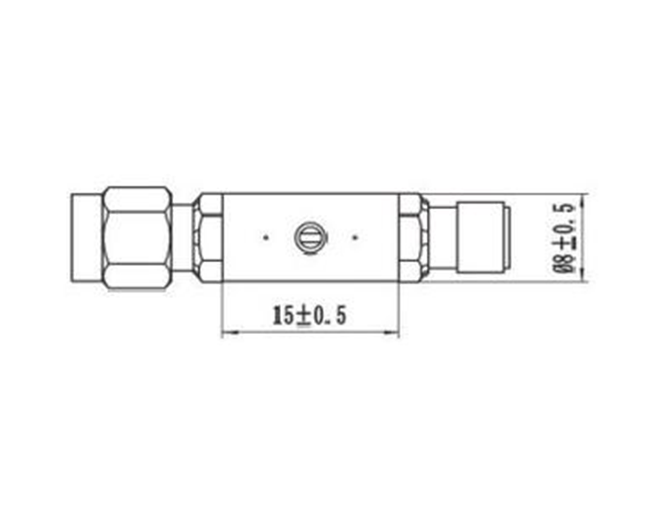

Dimensions ≤φ8mm×15mm (excluding connectors)
Weight ≤12g

Note
(1) Default unit for dimensions: millimeter (mm)/degree (°); Unless otherwise specified, default tolerances are: x±1.0/x±0.50 for dimensions, ±1° for angles, and ±0.3 for holes;
(2) Dimensions, interfaces and operating temperature ranges can be customized according to customer requirements.
