Product Reference
BT-C0.1_1A

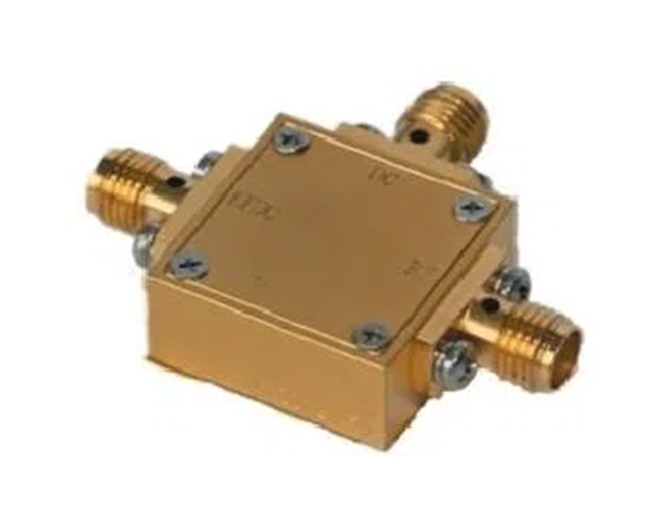

Product Introduction
Bias Tee integrates T-type bias chip with frequency range covering 0.1-1.0 GHz, typical insertion loss 0.1dB. On-chip choke inductor has parasitic resistance of 5Ω. It can power the chip through inductor and add DC-blocking capacitor at output to achieve DC signal isolation.

Key Features
RF Bandwidth 100MHz～1GHz
Insertion Loss ≤0.15dB
DC Isolation ≥35dB
Operating Temperature Tange 4K±1K
Storage Temp. -55℃～+85℃
RF Port SMA-K Coaxial Connector
Power Supply Port Feedthrough Capacitor
Housing Gold-Plated Copper Enclosure

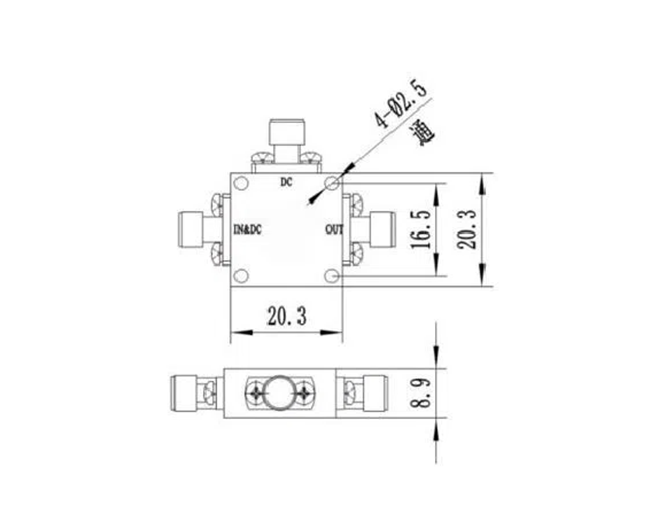

Dimensions 20.3mm×20.3mm×8.9mm
(excluding connectors)
Weight 20g

Note
(1) Default unit for dimensions: millimeter (mm)/degree (°); Unless otherwise specified, default tolerances are: x±1.0/x±0.50 for dimensions, ±1° for angles, and ±0.3 for holes;
(2) Dimensions, interfaces and operating temperature ranges can be customized according to customer requirements.
