Product Reference

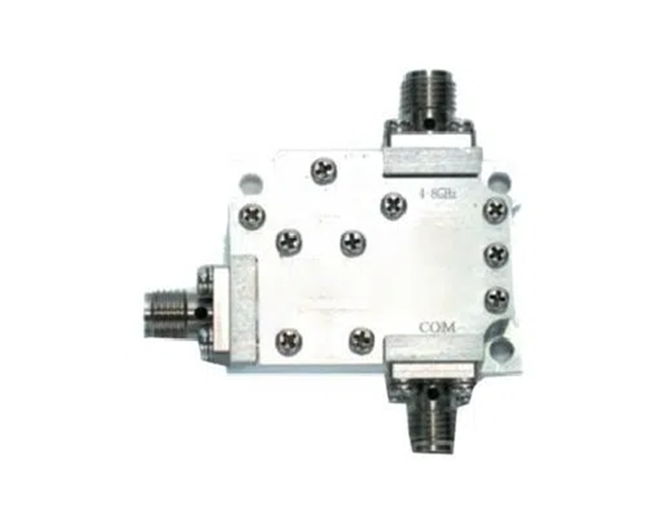

CP-C0.05_8A
Product Introduction
Duplexer contains low-pass channel and high-pass channel, serving as signal combiner in microwave links.
Key Features
Operating Temp, Room Temperature
Storage Temp. -55℃~+85℃
RF Bandwidth 0.05~1GHz;4GHz~8GHz
Indertion Loss ≤0.2dB
Isolation ≥15dB
RF Port SMA-K
Housing Aluminum Alloy

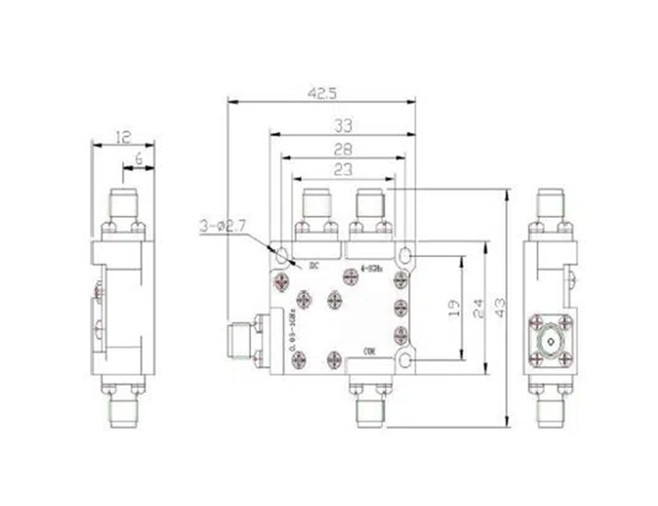

Dimensions ≤33mm×24mm×12mm
Weight ≤15g
Note
(1) Default unit for dimensions: millimeter (mm)/degree (°); Unless otherwise specified, default tolerances are: x±1.0/x±0.50 for dimensions, ±1° for angles, and ±0.3 for holes;
(2) Dimensions, interfaces and operating temperature ranges can be customized according to customer requirements.
