Product Reference
CAPS-R-P3

Product Introduction

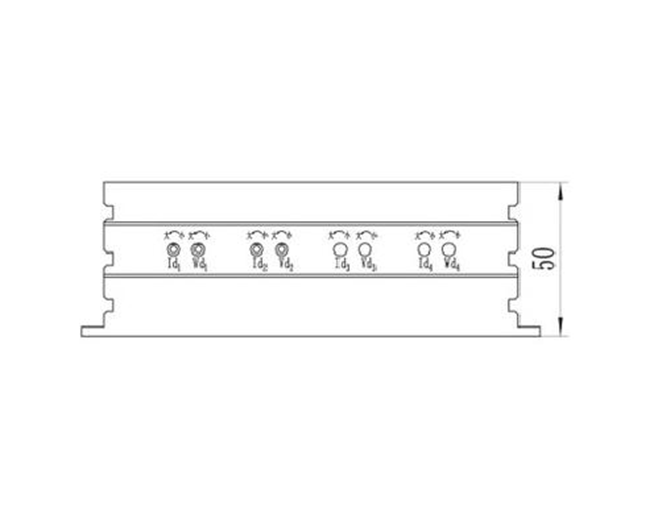

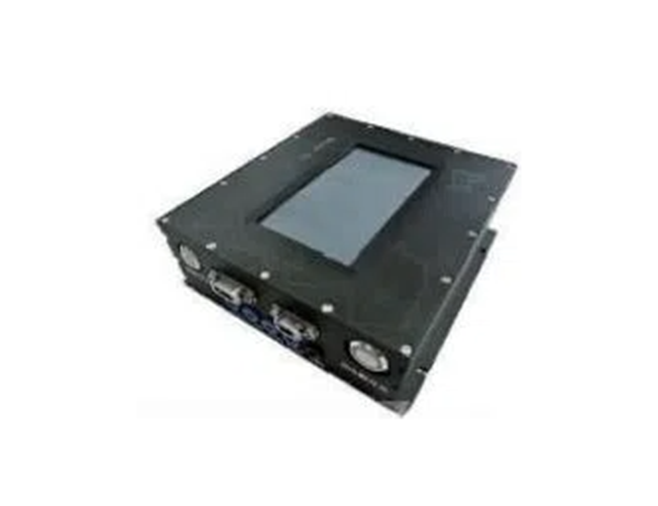

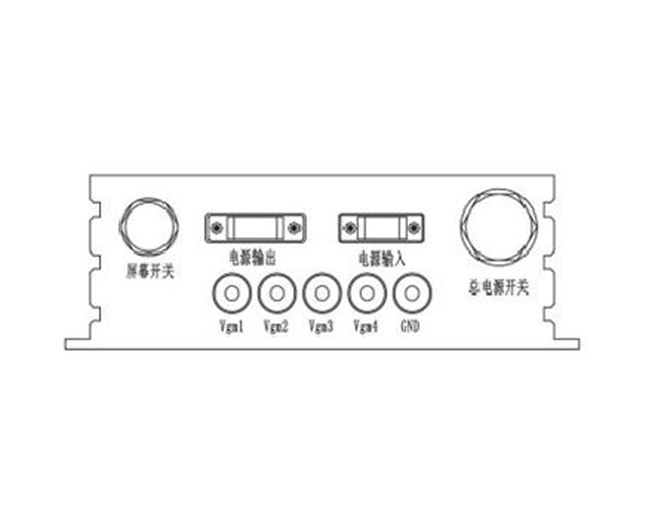

DFN-LPS-P3 Intelligent Power Supply is a compact power supply designed for low-noise amplifiers. Gate and drain voltages are adjustable over wide ranges, with VD and ID displayed on the LCD screen and controlled by potentiometer knobs on the rear panel. VG can be measured using a multimeter from the banana sockets on the front panel. This power supply features continuously adjustable output voltage and low power supply ripple.

Key Features
Input Voltage ±12V
4 Output Channels Display Accuracy Voltage 0.001V
Current 0.01mA
Vd Range 0～4V
Id Range 0～60mA
Vg Range -10V～+10V
Operating Temp. 0℃～+50℃
Storage Temp. -40℃～+70℃
Input Port J30JA-9ZK
Output Port J30JA-15ZK
Housing Aluminum Alloy 2A12-T4

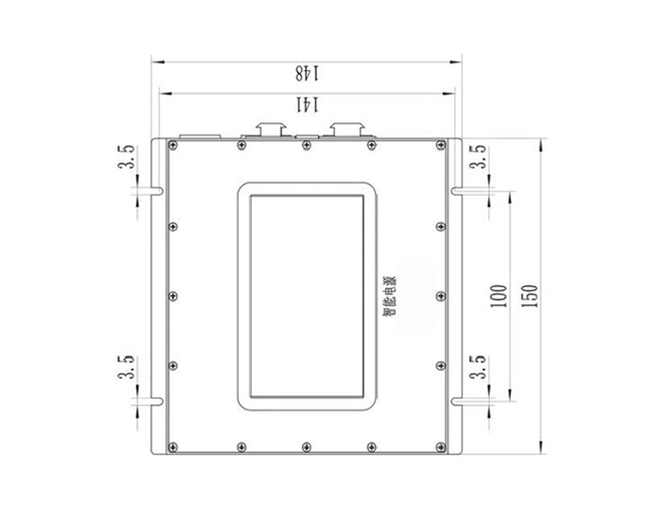

Dimensions ≤150mm×148mm×50mm (excluding connectors)
Weight ≤900g

Note
(1) Default unit for dimensions: millimeter (mm)/degree (°); Unless otherwise specified, default tolerances are: x±1.0/x±0.50 for dimensions, ±1° for angles, and ±0.3 for holes;
(2) Dimensions, interfaces and operating temperature ranges can be customized according to customer requirements.
