Product Reference

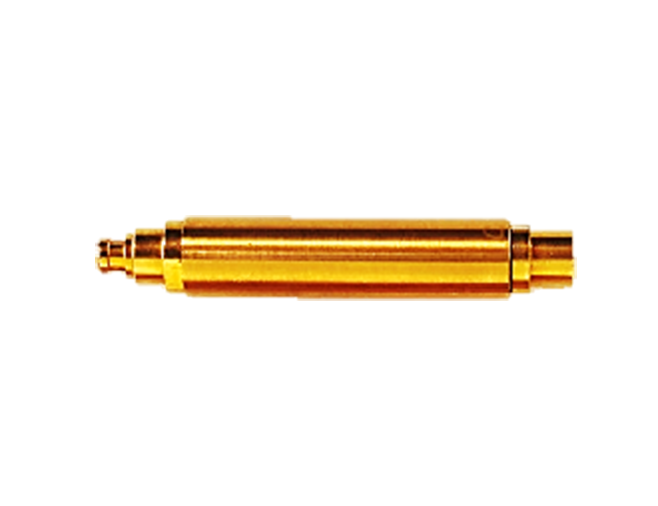

LPF-C0_8B

Product Introduction
Cryogenic Low-Pass Filter features low insertion loss and high out-of-band rejection characteristics, operating in ultra-low temperature environments to filter out interference signals from room temperature to cryogenic readout links. Suitable for deep space exploration, radio astronomy, quantum computing and wireless communications. The LPF-C0_8B low-pass filter operates at 4K temperature range with wide bandwidth and high out-of-band rejection characteristics.

Key Features
RF Bandwidth DC～8GHz
Insertion Loss ≤1.5dB
VSWR ≤1.25(DC～8GHz)
Out-of-Band Rejection ≥40dB@10.5GHz～20GHz
Operating Temp. 10mK～5k
Storage Temp. -55℃～+85℃
Port SSMP-JK Coaxial Connector
Housing Gold-Plated Copper Enclosure

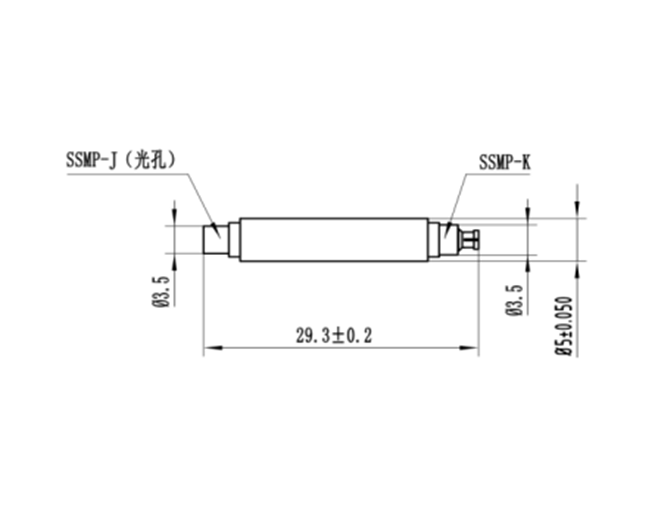

Dimensions ≤Φ5mm×29.3mm
Weight ≤20g

Note
(1) Default unit for dimensions: millimeter (mm)/degree (°); Unless otherwise specified, default tolerances are: x±1.0/x±0.50 for dimensions, ±1° for angles, and ±0.3 for holes;
(2) Dimensions, interfaces and operating temperature ranges can be customized according to customer requirements.
