Product Reference
CPF-C-A

Product Introduction

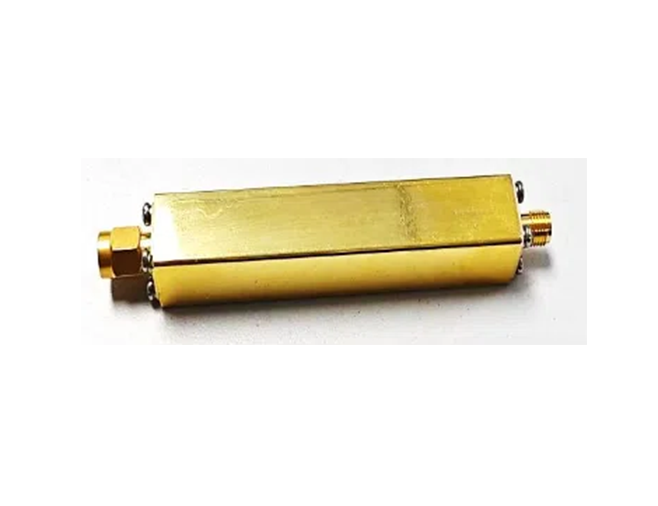

Copper Powder Filter features excellent high-frequency noise suppression characteristics, operating at low temperatures to achieve high-frequency filtering functionality, applicable in deep space exploration, radio astronomy, quantum computing, and other fields.

Key Features
High-Frequency Rejection ≥70dB@500MHz~18GHz
Operating Temperature Range 10mK～5K
Storage Temp. -55℃～+85℃
RF Connectors SMA-J,SMA-K
Housing Gold-Plated Copper Enclosure

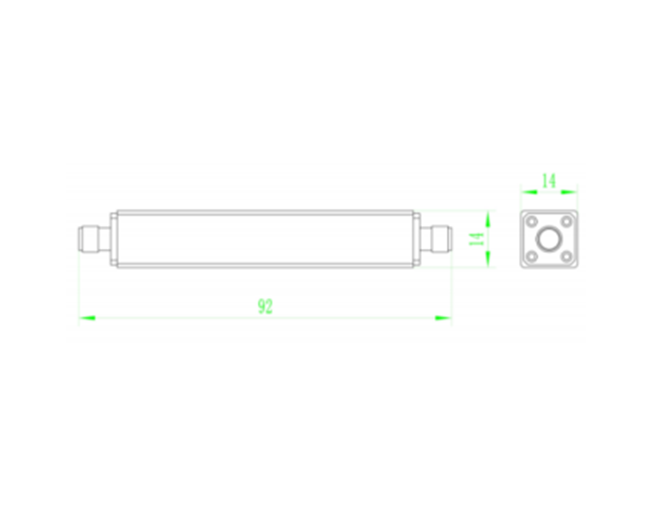

Dimensions ≤92mm×14mm×14mm

Note
(1) Default unit for dimensions: millimeter (mm)/degree (°); Unless otherwise specified, default tolerances are: x±1.0/x±0.50 for dimensions, ±1° for angles, and ±0.3 for holes;
(2) Dimensions, interfaces and operating temperature ranges can be customized according to customer requirements.
