Product Feature
（1）Integrated Dewar and Cold finger Assembly Design

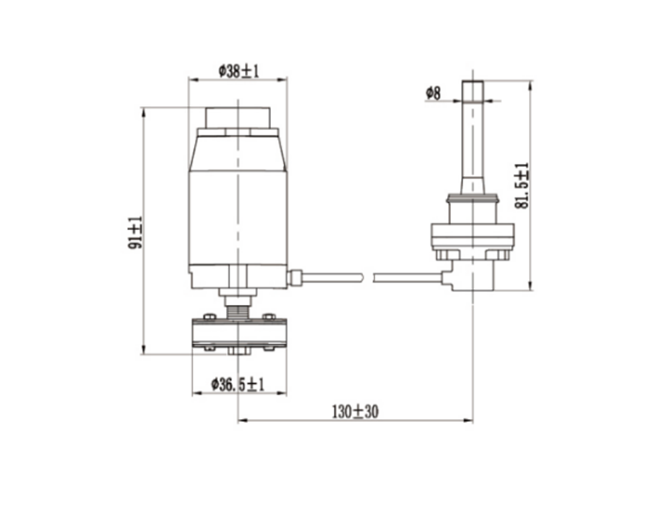

（2）Standardized Cold Finger Mechanical Interface φ8mm
（3）Built-out High-precision Drive Controller
（4）Small size / light weight / long lifespan

Key Specification
（1）Total Cooling Power： 0.7W@77K@23℃
0.5W@77K@71℃
(2)Typical Cool Down Time： 6min@77K@23℃@250J
10min@77K@71℃@250J
(3)Typical Maximum Input Power： 30W℃
(4)Typical Steady State Input Power ： 15W℃(@77K@23℃)
25W℃(@77K@71℃)
(5)Input Voltage： 24V℃
(6)Cooler Weight： 400g
(7)Cold Finger Diameter： 8mm
(8)Basic MTTF(hr) ：20000h
(9)Ambient Temperature Range - Operation ：-55℃~71℃

Application Field
Temperature above 77K / second-generation focal plane detectors with arrays up to 640×512
