Overview

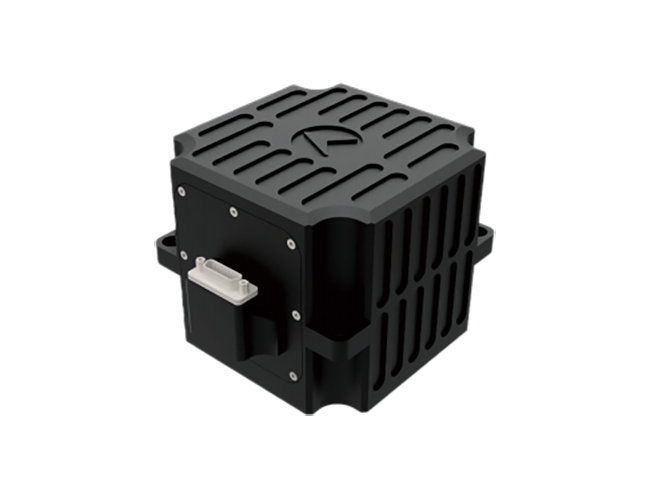

The T40 medium-low precision fiber optic strapdown inertial navigation system is a general-purpose navigation device suitable for multiple scenarios. It uses a 40-type three-axis fiber optic gyroscope and a small quartz flexible accelerometer to sense the motion of the carrier. It can form a combined navigation system with a satellite positioning system (GNSS) or DVL and odometer, and transmit real-time navigation information such as speed, position and attitude to the outside world through the communication port at a specified period.

Features
● Small size and light weight make it easy to install and deploy on the carrier.
● Flexible navigation modes: Supports multiple modes such as pure inertial navigation, GPS combined navigation, odometer combined navigation, and DVL underwater combined navigation to adapt to different application scenarios.
● Communication protocol is configurable: The communication protocol and baud rate can be set according to user needs.
● Excellent environmental adaptability; can be connected to external vibration damping brackets; resistant to strong impact vibration.
● Rich and reliable interface configuration: Equipped with RS422, RS232 and other digital communication interfaces.
● Communication interface to meet the data interaction needs of multiple devices.
● High reliability

Physics/Electricals

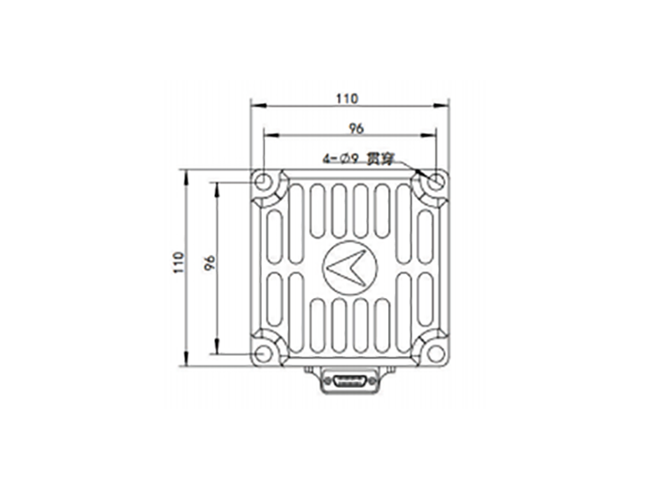

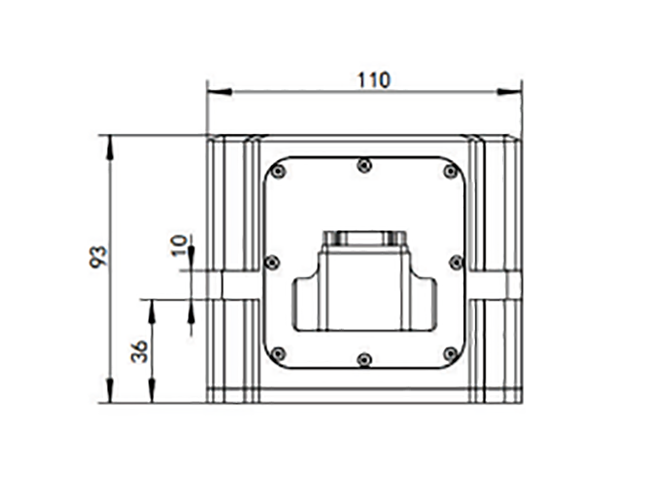

● External dimensions: 110mm × 110mm × 93mm
● Weight: Less than 1.3kg
● Power supply: 17-36V DC power supply, nominal power supply voltage 28V
● Power consumption: Steady-state power consumption less than 15W
● External connector: J30JM-25ZKP

Environmental adaptability
● Operating temperature: -40 ℃ ~ +60 ℃
● Storage temperature: -55 ℃ ~ +80 ℃
● Vibration: 6.06g (RMS), 20Hz~2000Hz
● Impact: 30g, 6ms~8ms
