Overview

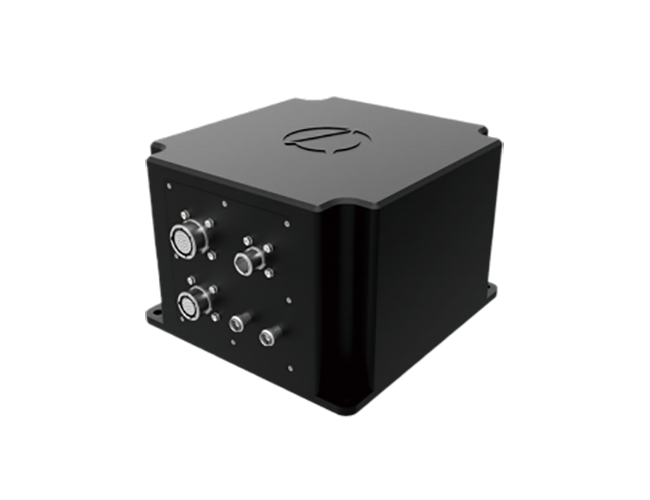

The T120 high-precision fiber optic strapdown inertial navigation system uses a 120-type three-axis fiber optic gyroscope and a high-precision quartz flexural accelerometer as its core inertial devices to achieve high-precision measurement of carrier motion. It can be combined with a satellite positioning system (GNSS) or DVL and odometer to form a combined navigation system, and transmit real-time navigation information such as speed, position and attitude to the outside world through the communication port at a specified period.
Features
● High precision.
● Flexible navigation modes: Supports multiple modes such as pure inertial navigation, GPS combined navigation, odometer combined navigation, and DVL underwater combined navigation to adapt to different application scenarios.
● Communication protocol is configurable: The communication protocol and baud rate can be set according to user needs.
● Excellent environmental adaptability and resistance to strong impact and vibration.
● Rich and reliable interface configuration: Equipped with digital communication interfaces such as RS422, RS232, CAN, and Ethernet to meet the data interaction needs of multiple devices.
● High reliability.
Physics/Electricals

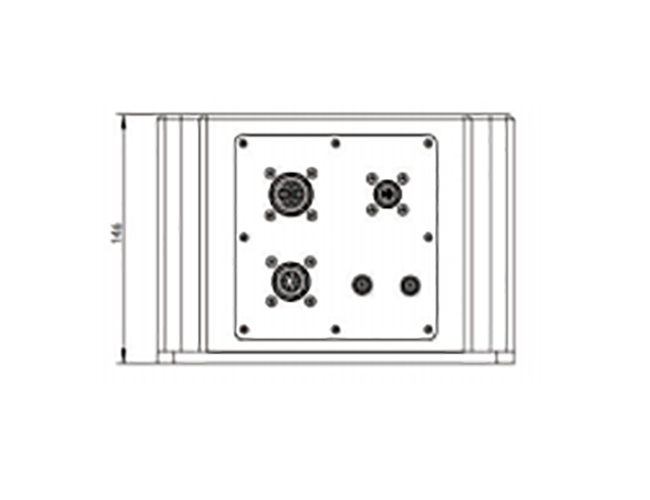

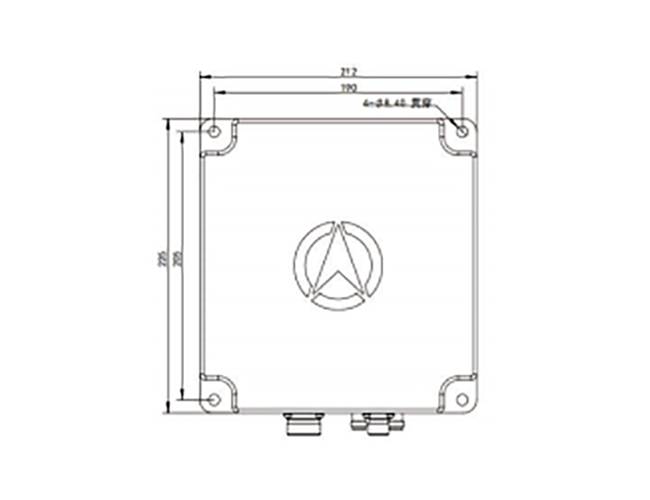

● External dimensions: 225mm × 212mm × 146mm
● Weight: Less than 8.0 kg
● Power supply: 12-32V DC power supply, nominal power supply voltage 24V
● Power consumption: Steady-state power consumption less than 25W
● External connectors: J599/24FA35PLN, J599/24FC35PLN, J599/24FB35PLN
Environmental adaptability
● Operating temperature: -40 ℃ ~ +60 ℃
● Storage temperature: -55 ℃ ~ +80 ℃
● Vibration: 6.06g (RMS), 20Hz~2000Hz
● Impact: 30g, 6ms~8ms
Specifications
|
No. |
Items |
Parameter |
|
1 |
Azimuth self-alignment accuracy |
≤0.03 °sec(Φ) (Φ is the local latitude ) |
|
2 |
Horizontal attitude alignment accuracy |
≤0.006 ° ( 1σ ) |
|
3 |
Azimuth maintenance accuracy |
0.006°/h (10min, 1σ) |
|
3 |
Horizontal attitude maintenance accuracy |
0.004°/h (10min, 1σ) |
|
4 |
Position accuracy |
Single-point positioning: ≤2m (50% CEP) ; RTK: ≤2cm + 1ppm (50% CEP); ≤1nmile/2h (50% CEP) |
|
5 |
Speed accuracy |
≤0.02m/s (1σ, inertial/satellite combination) ; ≤0.4m/s (1σ, pure inertial) |
|
6 |
Inertial/ODD/DVL combined accuracy |
0.1%D (depending on ODO or DVL precision) |
|
8 |
Alignment Time |
≤5min |
