Overview

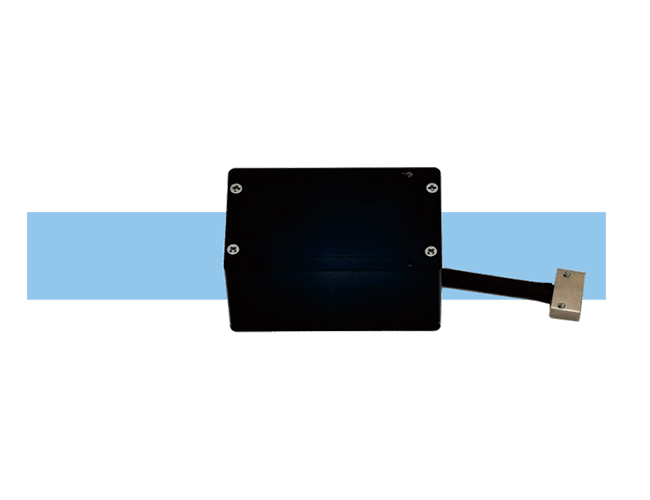

The SG30-SP is a fully solid-state digital closed-loop, low-to-medium precision single-axis fiber optic gyroscope based on the SAGNAC principle. It consists of an SLD light source, fiber optic coupler, photodetector, integrated optical phase modulator, fiber optic sensing loop, circuitry, and structural components. Specifically designed for servo-stabilized platforms, it features small size, high update rate, low latency, low noise, and high bandwidth, making it an ideal choice for low-to-medium precision angular rate sensors and suitable for a wide range of applications in various types of stabilization platforms.

Features
● Single 5V power supply.
● The update rate can reach up to 4000Hz.
● Excellent performance across all temperatures.
● Excellent start-up performance; it reaches the nominal specifications immediately upon power-on, without the need for preheating.
● Excellent environmental adaptability and resistance to strong impact and vibration.
● Interference fringe recognition technology supports cold start across the full dynamic range.
● High reliability.
● No dead zones.

Physics/Electricals

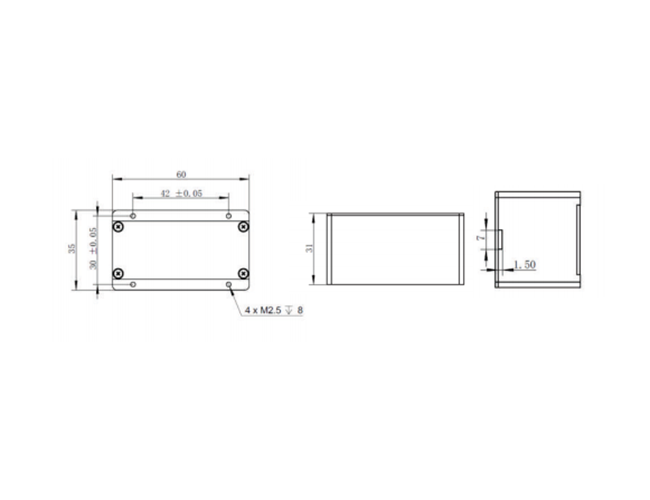

● External dimensions: 60mm x 35mm x 31mm
● Weight: 120g ± 10g
● Power supply: +5V
● Power consumption: Steady-state power consumption ≤ 2.5W, full -temperature steady-state power consumption ≤ 4W
● Instantaneous starting current: <1.5A
● Electrical type: RS422

Environmental adaptability
● Operating temperature: -45 ℃ ~ +70 ℃
● Storage temperature: -55 ℃ ~ +80 ℃
● Vibration: 6.06g (RMS), 20Hz~2000Hz
● Impact: 200g, 6ms~8ms
