Overview

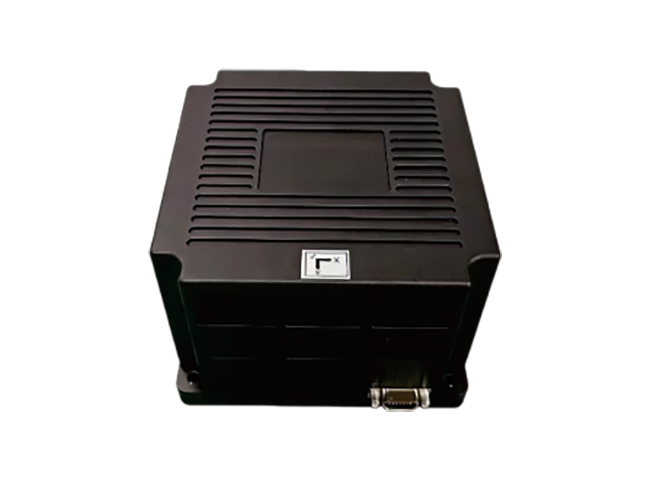

The MG340 is a fully solid-state digital closed-loop three-axis integrated fiber optic gyroscope based on the SAGNAC principle. It consists of an SLD light source, fiber optic coupler, photodetector, integrated optical phase modulator, fiber optic sensing loop, circuitry, and structural components. Structurally, it is designed as an IMU (Integrated Device Unit) and includes a pre-installed mounting position for a quartz accelerometer, allowing for direct user installation.

Features
● +5V/+18V power supply optional, low power consumption.
● Excellent performance across all temperatures.
● Excellent start-up performance; it reaches the nominal specifications immediately upon power-on, without the need for preheating.
● Excellent environmental adaptability and resistance to strong impact and vibration.
● Interference fringe recognition technology supports cold start across the full dynamic range.
● High reliability.
● No dead zones.

Physics/Electricals

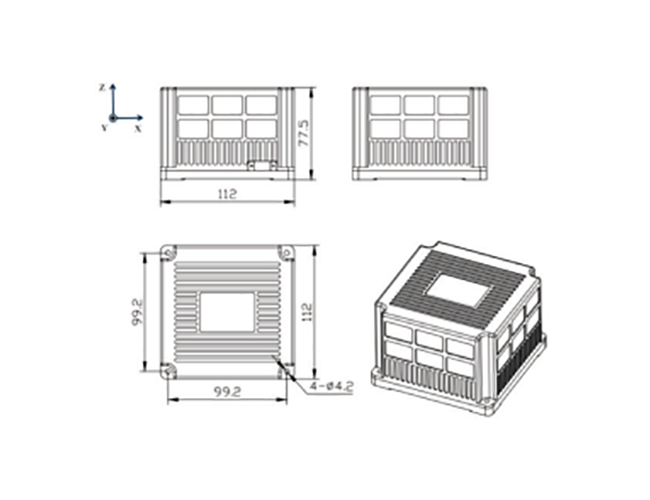

● External dimensions: 112mm × 112mm × 77.5mm
● Weight: <1kg
● Power supply: +5V/+18V power supply optional
● Power consumption: Steady-state power consumption ≤ 4W, fully steady-state power consumption ≤ 8W
● Instantaneous starting current: <1.5A
● Electrical type: RS422

Environmental adaptability
● Operating temperature: -45 ℃ ~ +70 ℃
● Storage temperature: -55 ℃ ~ +80 ℃
● Vibration: 6.06g (RMS), 20Hz~2000Hz
● Impact: 100 g, 6ms~8ms
