Overview

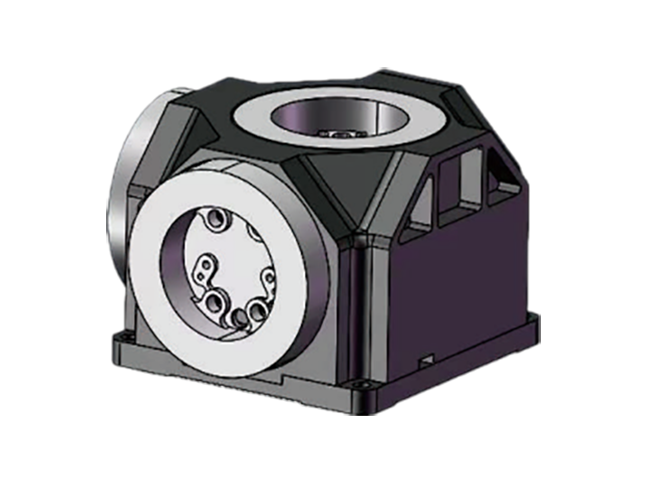

The TG40-SF is a fully solid-state digital closed-loop three-axis integrated fiber optic gyroscope based on the SAGNAC principle. It consists of an SLD light source, fiber optic coupler, photodetector, integrated optical phase modulator, fiber optic sensing loop, circuitry, and structural components. Its integrated design features small size, high reliability, and flexible structure, making it suitable for a wide range of applications and a top choice for medium-to-low precision three-axis fiber optic gyroscopes.

Features
● Single 5V power supply, low power consumption.
● Excellent performance across all temperatures.
● Excellent start-up performance; it reaches the nominal specifications immediately upon power-on, without the need for preheating.
● Excellent environmental adaptability and resistance to strong impact and vibration.
● Interference fringe recognition technology supports cold start across the full dynamic range.
● High reliability.
● No dead zones.

Physics/Electricals

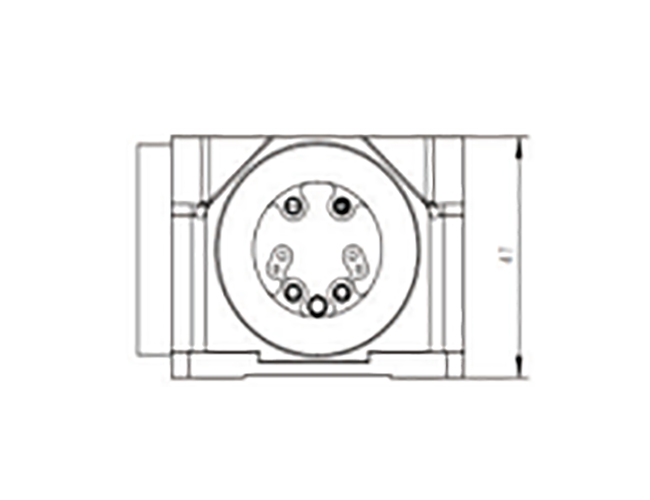

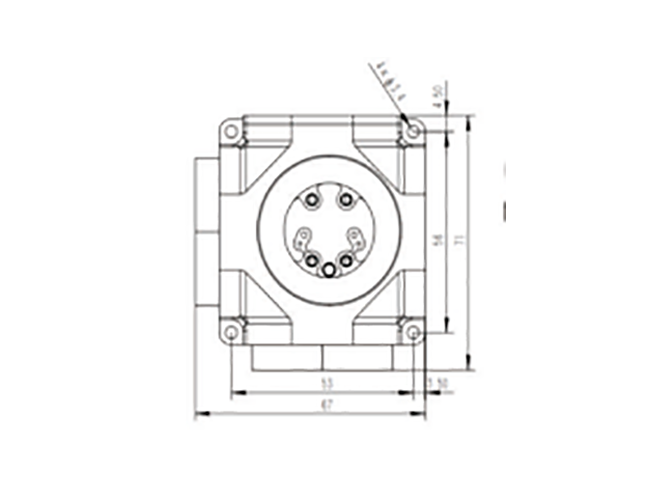

● Dimensions: 67 mm x 71 mm x 47 mm
● Weight: 370 g ± 10 g
● Power supply: +5V
● Power consumption: Steady-state power consumption ≤ 4 W, full -temperature steady-state power consumption ≤ 8 W
● Instantaneous starting current: < 2 A
● Electrical type: RS422

Environmental adaptability
● Operating temperature: -45 ℃ ~ +70 ℃
● Storage temperature: -55 ℃ ~ +80 ℃
● Vibration: 6.06g (RMS), 20Hz~2000Hz
● Impact: 100 g, 6ms~8ms
