Overview

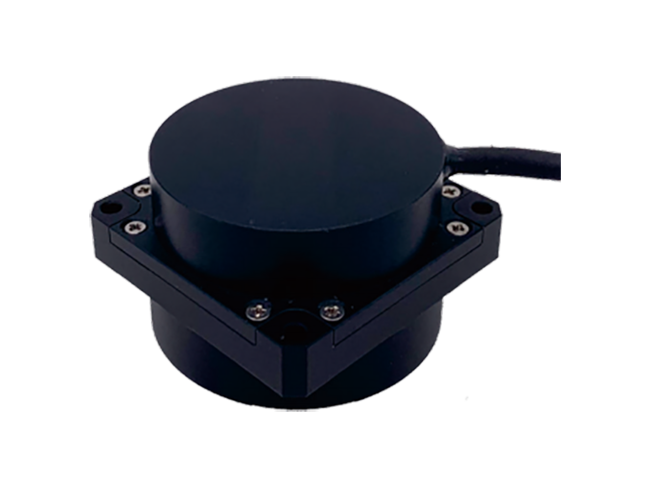

The SG50-SF is an all-solid-state digital closed-loop, low-to-medium precision single-axis fiber optic gyroscope based on the SAGNAC principle. It consists of an SLD light source, fiber optic coupler, photodetector, integrated optical phase modulator, fiber optic sensing loop, circuitry, and structural components. As a classic gyroscope, it features small size, high update rate, low latency, low noise, high bandwidth, and excellent environmental adaptability, making it an ideal choice for low-to-medium precision angular rate sensors. It can be widely used in various types of stabilization platforms and navigation and guidance fields.

Features
● Single 5V power supply.
● The update rate can reach up to 4000Hz.
● Excellent performance across all temperatures.
● Excellent start-up performance; it reaches the nominal specifications immediately upon power-on, without the need for preheating.
● Excellent environmental adaptability and resistance to strong impact and vibration.
● Interference fringe recognition technology supports cold start across the full dynamic range.
● High reliability.
● No dead zones.

Physics/Electricals

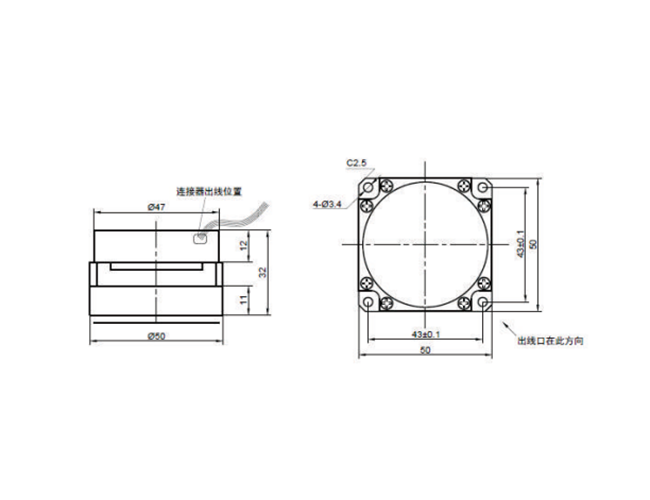

● External dimensions : 50mm x 50mm x 32mm
● Weight: 120g ± 5g
● Power supply: +5V
● Power consumption: Steady-state power consumption ≤ 2.5W, full -temperature steady-state power consumption ≤ 4W
● Instantaneous starting current: <1.5A
● Electrical type: RS422

Environmental adaptability
● Operating temperature: -45 ℃ ~ +70 ℃
● Storage temperature: -55 ℃ ~ +80 ℃
● Vibration: 6.06g (RMS), 20Hz~2000Hz
● Impact: 200g, 6ms~8ms
